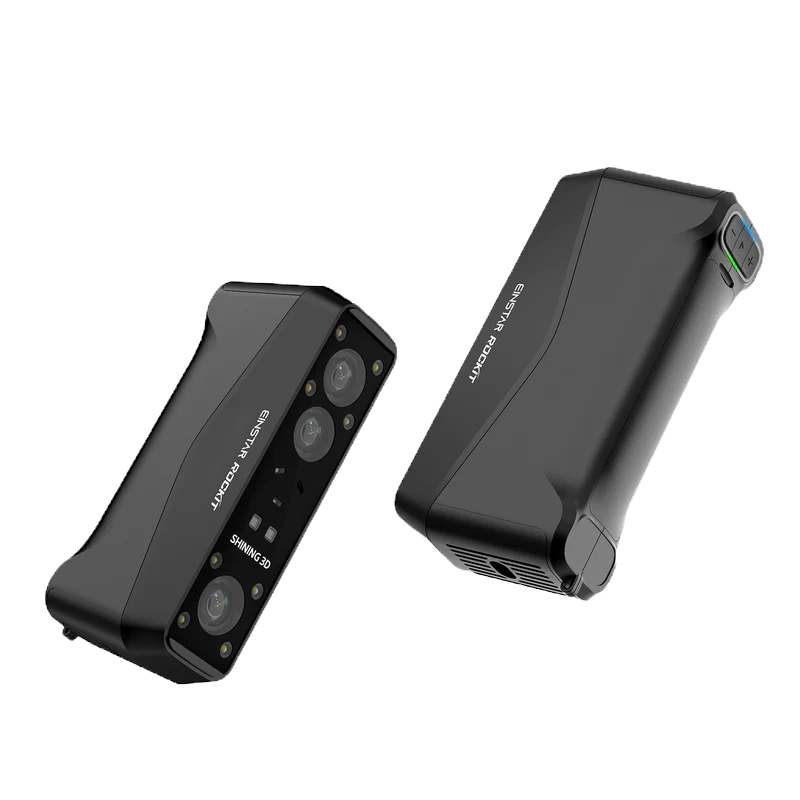

Einstar Rockit

EINSTAR ROCKIT | WIRELESS HANDHELD 3D SCANNER
Rock-it in Your Pocket
Pro-level 3D scanning performance in the palm of your hand. Built-in Wi-Fi, marker-free capability, dual light sources, and smart audio feedback — ready to scan whenever and wherever you are.
――――――――――――――――――――――――――
KEY FEATURES
Truly Wireless Built-in Wi-Fi 6 module — no hub or adapter needed. Swappable 5500mAh battery provides up to 3 hours of continuous scanning.
Marker-Free Scanning Scan feature-rich objects without placing markers. Dramatically reduces setup time while maintaining accuracy.
Dual Light Source Blue laser for precision detail on small parts + IR VCSEL for rapid scanning of large objects and outdoor use.
Up to 90 FPS Capture Speed Up to 4,800,000 points per second with smooth real-time data transmission to your PC.
5MP Texture Camera High-fidelity colour and texture capture in any scanning mode with minimal resolution loss.
Outdoor Ready Operates in bright light up to 110,000 Lux (Laser HD) and 70,000 Lux (IR Rapid) — reliable in full daylight.
Palm-Sized & Lightweight Only 425g with battery. Comfortable for extended sessions. Compact enough to fit in your pocket.
Smart Audio Feedback Real-time audio cues guide your scan so you stay focused on the object, not the screen.
――――――――――――――――――――――――――
WHO IS IT FOR?
Ideal for: Product Designers · Automotive Engineers · 3D Artists · Makers · Educators · Reverse Engineers

Use cases include:
Automotive part scanning & customisation
Reverse engineering & CAD modelling
3D printing preparation
Digital art creation & AR/VR content
Heritage preservation & sculpture scanning
Industrial inspection
Academic research & education
――――――――――――――――――――――――――
SPECIFICATIONS

LASER HD MODE
Light Source: 38 Blue Laser Lines (19+19 crossed + 7 parallel)
Resolution: 0.05 – 10 mm
Scanning Speed: Up to 2,800,000 points/sec
Working Distance: 100 – 600 mm
Max FOV: 545 × 620 mm
Min Scan Volume: 5 × 5 × 5 mm
Outdoor Lighting: Up to 110,000 Lux
Alignment: Global Marker / Markers / Features

IR RAPID MODE
Light Source: IR VCSEL
Resolution: 0.2 – 10 mm
Scanning Speed: Up to 4,800,000 points/sec
Working Distance: 160 – 1,400 mm
Max FOV: 1,170 × 1,385 mm
Min Scan Volume: 50 × 50 × 50 mm
Outdoor Lighting: Up to 70,000 Lux
Alignment: Global Marker / Markers / Features / Texture / Hybrid

GENERAL
Camera: 3D 2MP × 2 | Texture 5MP
Output Formats: STL, OBJ, PLY, 3MF, ASC
Connectivity: Built-in Wi-Fi 6 + USB Type-C backup
Battery: 5500mAh swappable, 60W PD 3.0 fast charge
Dimensions: 130 × 37 × 61 mm
Weight: 425g (with battery) / 353g (without)
Operating Temp: -10°C to 40°C
Laser Class: Class 2 (eye-safe)
Certifications: CE, FCC, RoHS, WEEE, FDA, SRRC, IP50
Software: EXStar Hub (included)

――――――――――――――――――――――――――

IN THE BOX
✓ EINSTAR Rockit Scanner ✓ Calibration Board ✓ Universal Holder ✓ Swappable Battery + Charger ✓ USB Type-C Cable ✓ Carrying Case ✓ EXStar Hub Software
